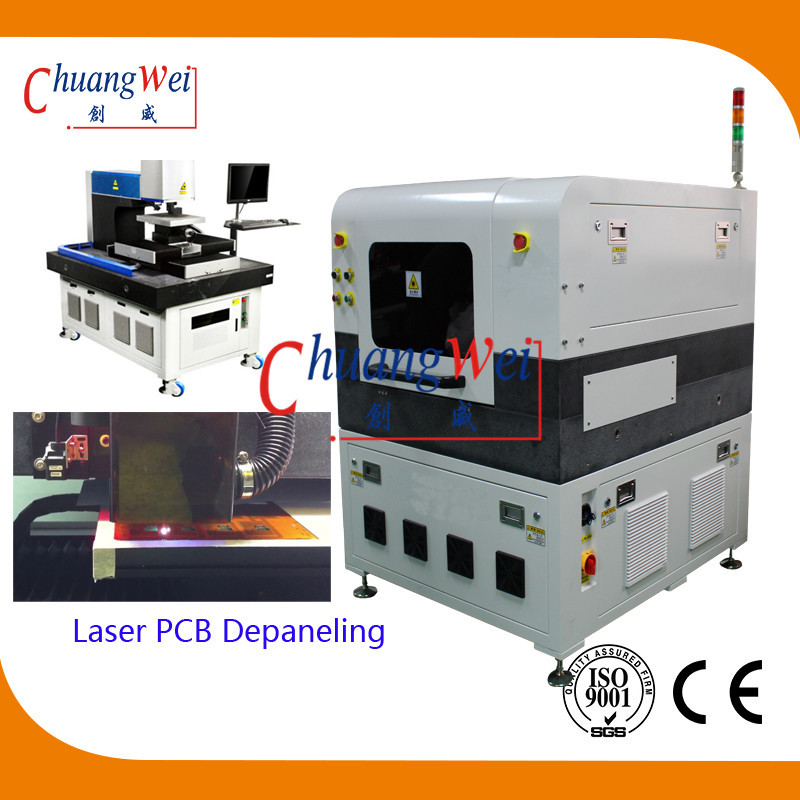

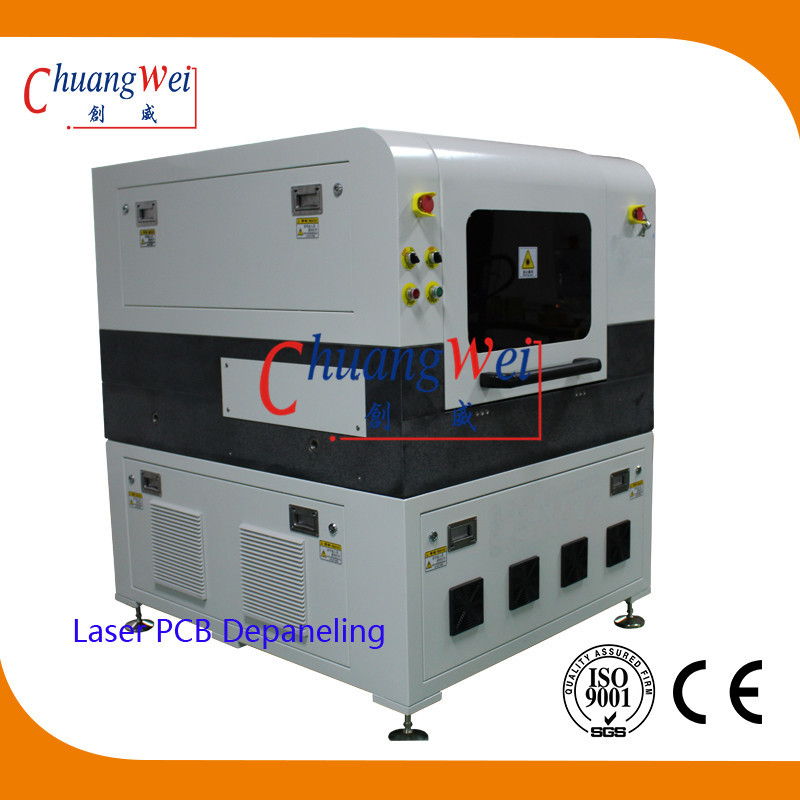

17W UV Optowave Laser Pcb Depaneling Machine without Cutting Stress
It is a Laser depaneling equipment, based on the Optowave laser source, capable of performing clean and safe cut without generating dust nor mechanical stress on the electronic components. LASER depanelling is the best way to perform extremely fast depaneling processes (up to 70% saving on cutting time obtained with traditional methods) and flexible cutting.
17W UV Optowave Laser Pcb Depaneling Machine without Cutting Stress Specification
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Power | 10W/12W/15W/17W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmX460mm(Customizable) |
| Laser Scanning Speed | 2500mm/s (max) |
| Galvanometer Working Field Per One Process | 40mmх40mm |
